GwliUni 2Pcs MPO Single Mode Female Loopback Plug Supports 12 Fiber Core 6 Channels for 40G 100G Networks and QSFP Testing

Product Code: 26121500

Supports -40~75? operating temperature

Description

The fiber loopback is mainly used to test the signal return in the system or network system.
It can detect potential abnormalities in the network link by the signal return( the pairwise connected TX transmitting end-face send the signals back to the RX receiving end-face),
and achieve the test and evaluation of individual single elements or interfaces on the fiber network.

?Product Detail?

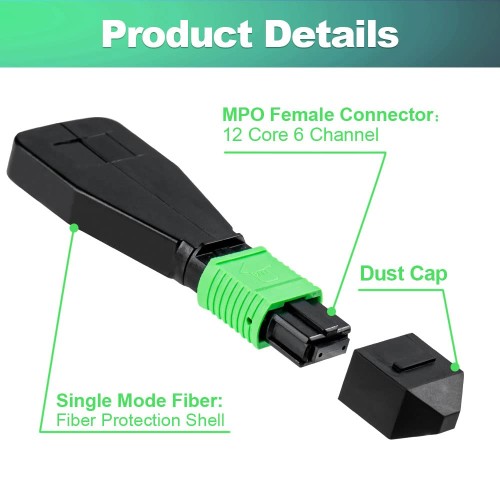

Connector Type: MPO/Female
Fiber type: Single mode
End Face Type: PC
Core Type: 12 Core/6 Channels
Insertion Loss:≤ 0.75db
Return Loss:≥60db

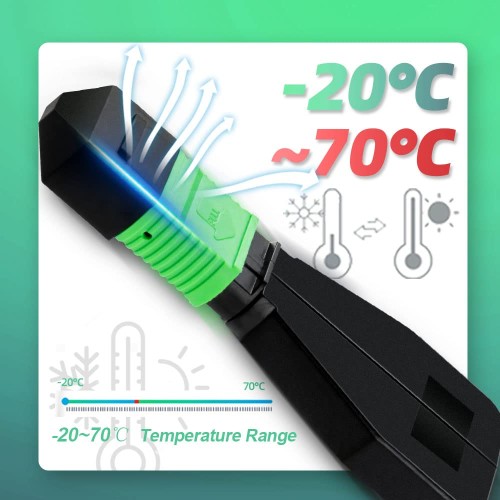

Operating temperature: -40~75?

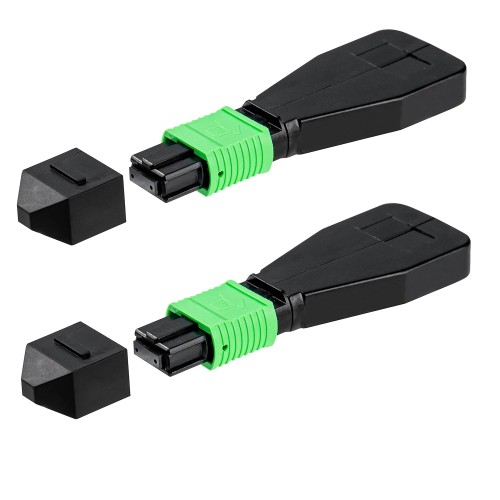

Packing Quantity:2 PCS

Specifications

Brand

Own Brand

GwliUni 2Pcs MPO Single Mode Female Loopback Plug Supports 12 Fiber Core 6 Channels for 40G 100G Networks and QSFP Testing

Product Code: 26121500

Supports -40~75? operating temperature

Description

The fiber loopback is mainly used to test the signal return in the system or network system.
It can detect potential abnormalities in the network link by the signal return( the pairwise connected TX transmitting end-face send the signals back to the RX receiving end-face),
and achieve the test and evaluation of individual single elements or interfaces on the fiber network.

?Product Detail?
Connector Type: MPO/Female
Fiber type: Single mode
End Face Type: PC
Core Type: 12 Core/6 Channels
Insertion Loss:≤ 0.75db
Return Loss:≥60db
Operating temperature: -40~75?
Packing Quantity:2 PCS

Only

£49.86 Pack of 1

incl. VAT £59.83

- +
